In each model of the CA series, a 2U national standard rack is used, covering the power range of 150 to 1200 watts. Excellent circuit design and a complete set of rack design make the CA series sturdy and durable, which is more cost-effective for any permanent audio installation system solution.
CA-900II power amplifier is a classic analog power amplifier. It adopts class H circuit design, which is mature and stable, suitable for various harsh environments, and can realize trouble-free operation. There are a variety of configurations, power levels and functions to choose from, which can almost meet the needs of all commercial applications. Including a large number of comprehensive protection circuits of CA power amplifiers. In view of the high temperature environment that is unfavorable to the machine when the power amplifier is working, the built-in audio limiter, start-up delayer and peak current limiter of the CA series power amplifier provide comprehensive protection.
| Nominal Parameters | |
| RMS output power | 2 x 600W/8Ω; 2 x 900W/4Ω; 2 x 1200W/2Ω; |
| Bridge output power | 1750W/8Ω; 2250W/4Ω |
| Circuit principle | class H |
| Input sensitivity | 1.4V, rated power output at 1KHz |
| Selectable input sensitivity | 0.775V/1V/1.4V |
| Input impedance | 20KΩ balance & 10KΩ unbalance |
| S/N Ratio | ≥100 dB |
| THD+N | ≤0.01% rated power at 8Ω at 1KHz |
| Damping factor | ≥500, 8Ω at 1KHz |
| Slew rate | 36V/µs at Stereo mode |
| Frequency response | 20Hz~20KHz, +3/0dB |
| Protections | Comprehensive short circuit, open circuit, overheating, UHF and RF protection |
| Cooling | Automatic variable speed fan, front exhaust |
| Power supply | 200-240VAC, 50/60Hz |
| Chassis | 2U extreme steel with stainless coating |
| Connector | Female XLR for input, Male XLR for link; speakON and binding post for output |
| Weight | 20kg |
| Dimension | 483 x 415 x 89mm (W x D x H) |

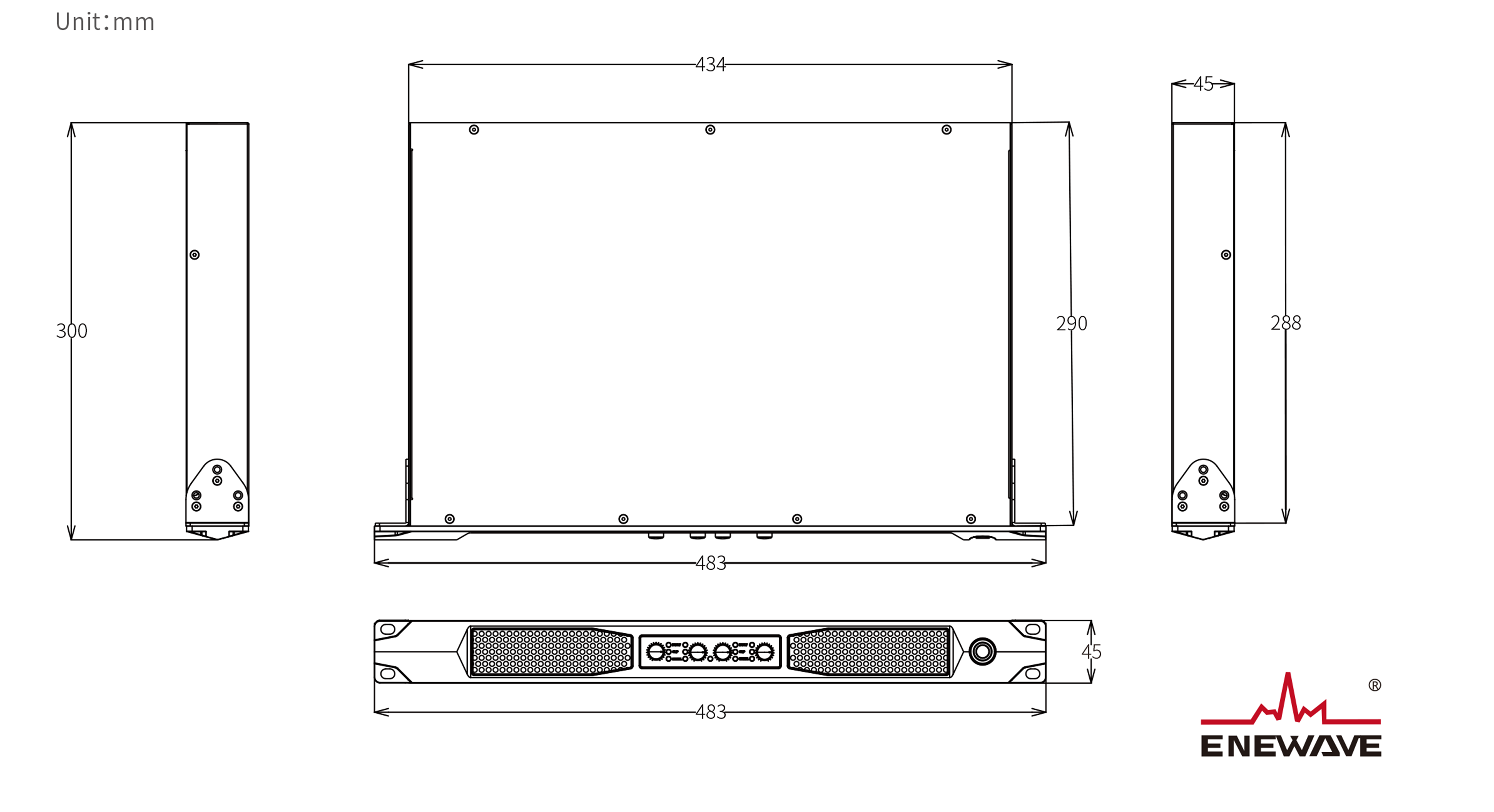

Unit : mm
